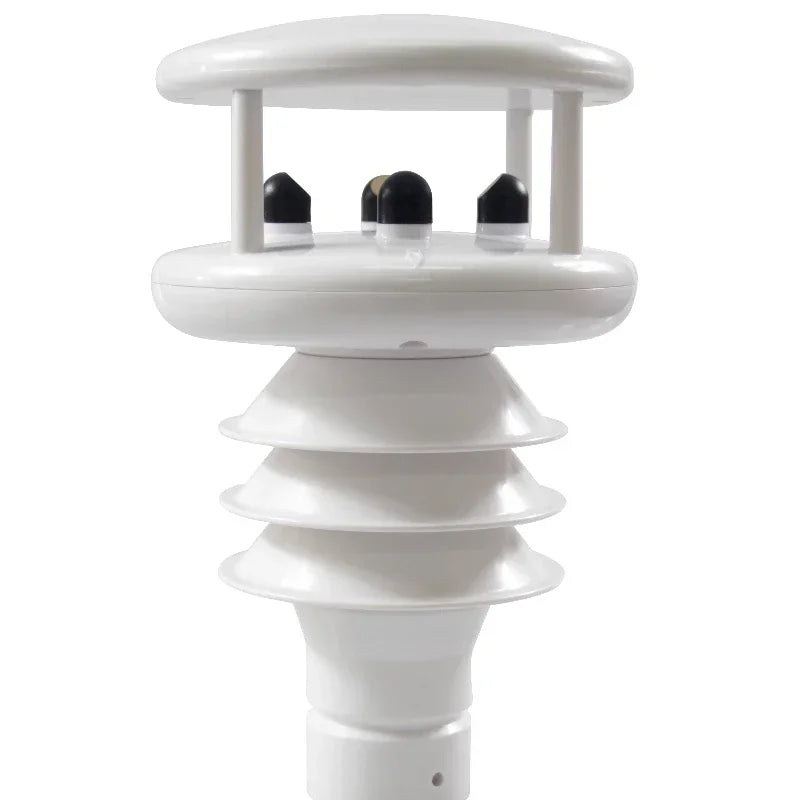

RIKA RK900-10 Integrated Wireless Ultrasonic Automatic Weather Station with Wind/Ambient Temperature Humidity/Solar/Rain

RIKA RK900-10 Integrated Wireless Ultrasonic Automatic Weather Station with Wind/Ambient Temperature Humidity/Solar/Rain

$1,353.19 USD
$1,691.49 USD $1,353.19 USD
Sale Sold out
Specification

Product Description



RK900-10 automatic weather instrument is simultaneously measure the atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure and precipitation.Temperature, humidity and air pressure sensor is placed within the radiation shield.Wind speed and direction of ultrasonic principle.24G radar detection on rainfall, which can quickly detect rainfall and rainfall intensity.Internal GPS global positioning module and electronic compass can be mounted to the system to give a good indication of latitude and longitude and relative speed, which can calculate the real and virtual wind speed and direction, and is especially suitable for installation on motion vector, such as special vehicles or vessels, etc.



FEATURES

  * High accuracy, fast response
  * Easy to install, all-weather measurement
  * RS232 / RS485 output optional
  * No moving parts, no maintenance
  * Auto-heating
  * Radar measurement of precipitation, accurately reflect the rainfall and start-stop moment
  * Elctronic compass, GPS and BDS global positioning module optional



APPLICATIONS
  *Unattended meteorological monitoring system
  * Mobile meteorological monitoring system
  * Electric power safety monitoring
  * Solar or wind power generation
  * Port and navigation of the ship
  * Scenic region
  * Meteorological science research


 TECHNICAL SPECIFICATION



Measure item

Measure range

Resolution

Accuracy

Wind speed

0-50m/s

0.01m/s

±2%

Wind direction

0-360º

1°

±3°

Atmospheric temperature

-40-+80℃

0.1℃

±0.2℃

Atmospheric humidity

0-100%RH

0.1%RH

±2%

Atmospheric pressure

150-1020hPa

0.1hpa

±1hPa

Rainfall

0-10mm/min

0.01mm

±0.4mm

Solar radiation

0-1750W/m2

1W/m2

±5%


Supply

12-24VDC

Output(Modbus-RTU)

RS485,RS232

Data update cycle

1s(default),other optional

Power consumption

<3W,heating power: 6W

Operating temperature

-40-+80℃

EMC

EN61000-6-3 , EN61000-3-3

EN61000-3-2 , EN61000-6-1

IP Rating

IP65

Main material

ABS




Details show
